Looking for palletizing machines or palletizing equipment for cartons or bags? Compare column, gantry and robot options by package, line rate and floor space—then send your line data for a configuration review and quote.
A palletizing machine stacks cartons, cases or bags onto a pallet in a defined pattern at the end of a packaging line, so the load can be stored and shipped as one unit. The main types are column palletizers, gantry (Cartesian) palletizers and robot palletizer cells. The right choice depends on the package, its weight, the line rate and the floor space available.
| Column palletizer | Gantry palletizer | Robot palletizer cell | |
|---|---|---|---|
| Motion | Vertical column with lifting arm | Linear X/Y/Z axes on an overhead frame | Articulated robot arm |
| Typical fit | Defined infeed and pallet position | Wide working envelope, several pallet positions | Changing formats, orientations and patterns |
| Footprint | Compact floor cell | Frame spans the area; floor below can stay open | Compact cell with guarding |
| Multi-line reach | One line, sometimes two | Can be reviewed for several lines | Depends on reach and layout |
| Changeover | Recipe-based pattern change | Recipe-based pattern change | Most flexible for new formats |
Payload and cycle rate depend on the package, gripper and stack pattern and are confirmed per project.
Send the items below for a factory configuration review. This page explains palletizing machines and palletizing equipment options; it does not list prices.
Related pages: carton palletizer, column, gantry, robot cell.
Palletizing machines (also called palletizing equipment) automatically stack cartons, bags or other packages onto pallets at the end of a line. Common arrangements are column, gantry (Cartesian) and robot cells. Which fits depends on package, weight, rate and floor space — not a single fixed model name.
The main types are column palletizers, gantry (Cartesian) palletizers and robot palletizer cells. Layer palletizers are another category for high-speed uniform lines. Compare options on our column, gantry and robot pages.
For regular cartons with simple stack patterns, a column or gantry palletizer is often enough. If formats or patterns change often, a robot cell is usually more flexible. See also carton palletizer. Send carton size, weight and line rate for a configuration review — no fake prices here.
A gantry layout can be reviewed for multiple infeed and pallet positions. Feasibility depends on combined cycle demand and layout.
Package type and dimensions, weight, target cycles per minute, pallet size, stack pattern and height, available floor space and power supply. Photos or a line drawing help.
Column, gantry and robot describe the handling arrangement; bag and carton describe what the system handles. The same package can call for different arrangements depending on reach, pallet flow and changeovers. These are starting points for a project review, not fixed machine specifications.

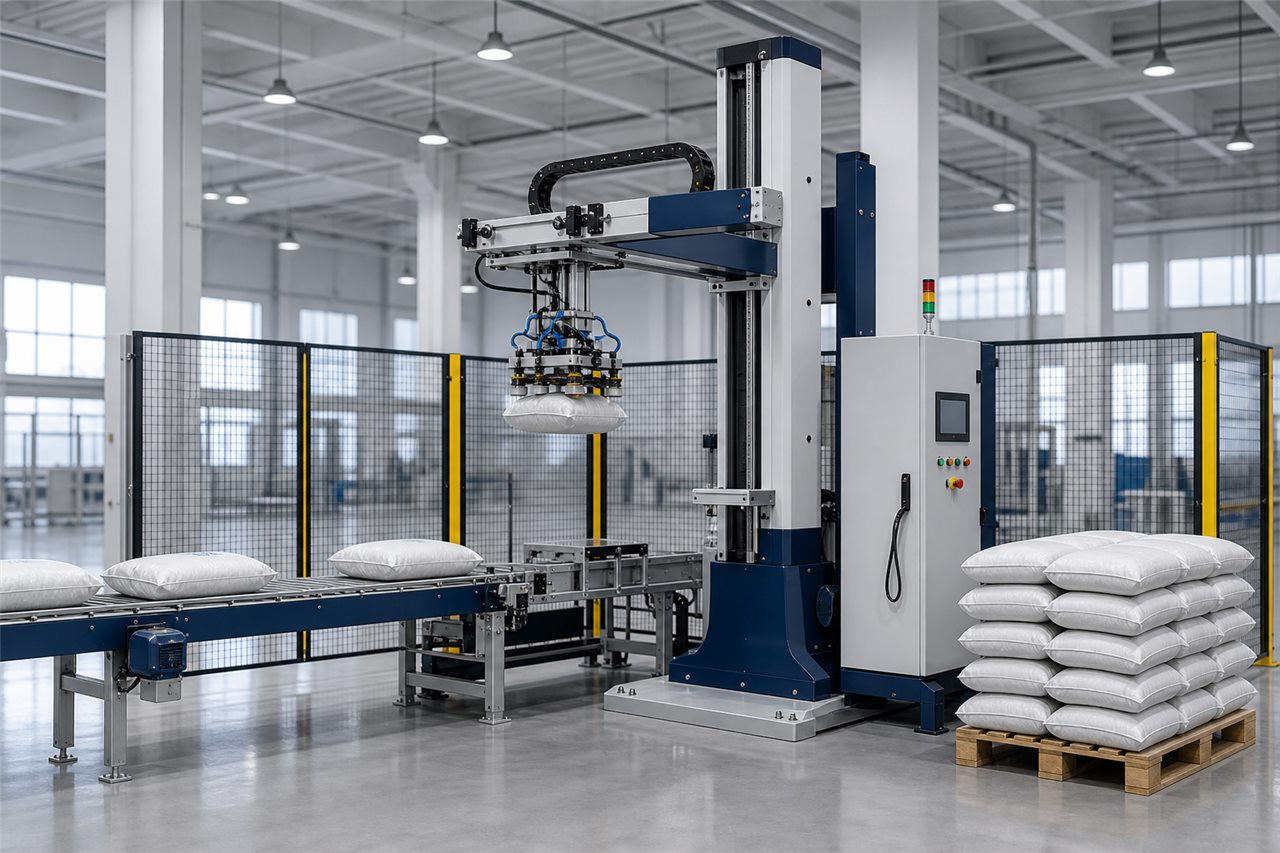

Consider a column layout for a defined infeed and pallet position. Check the required reach, stack height, combined package and gripper weight, and space for pallet exchange and guarding.

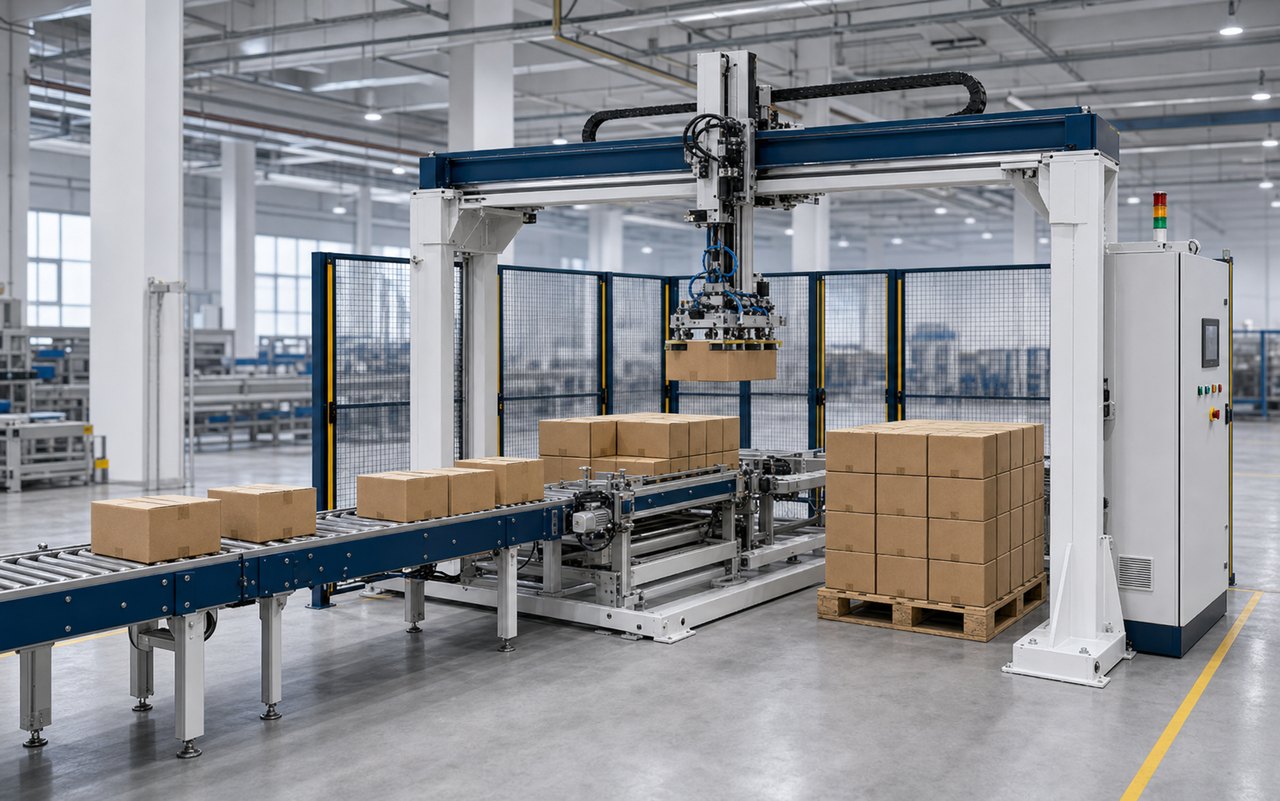

Review column palletizersConsider a gantry when one handling area must span multiple positions or a broad conveyor layout. Send the infeed and pallet coordinates, clearances, package weight and target cycles so the travel path can be assessed.

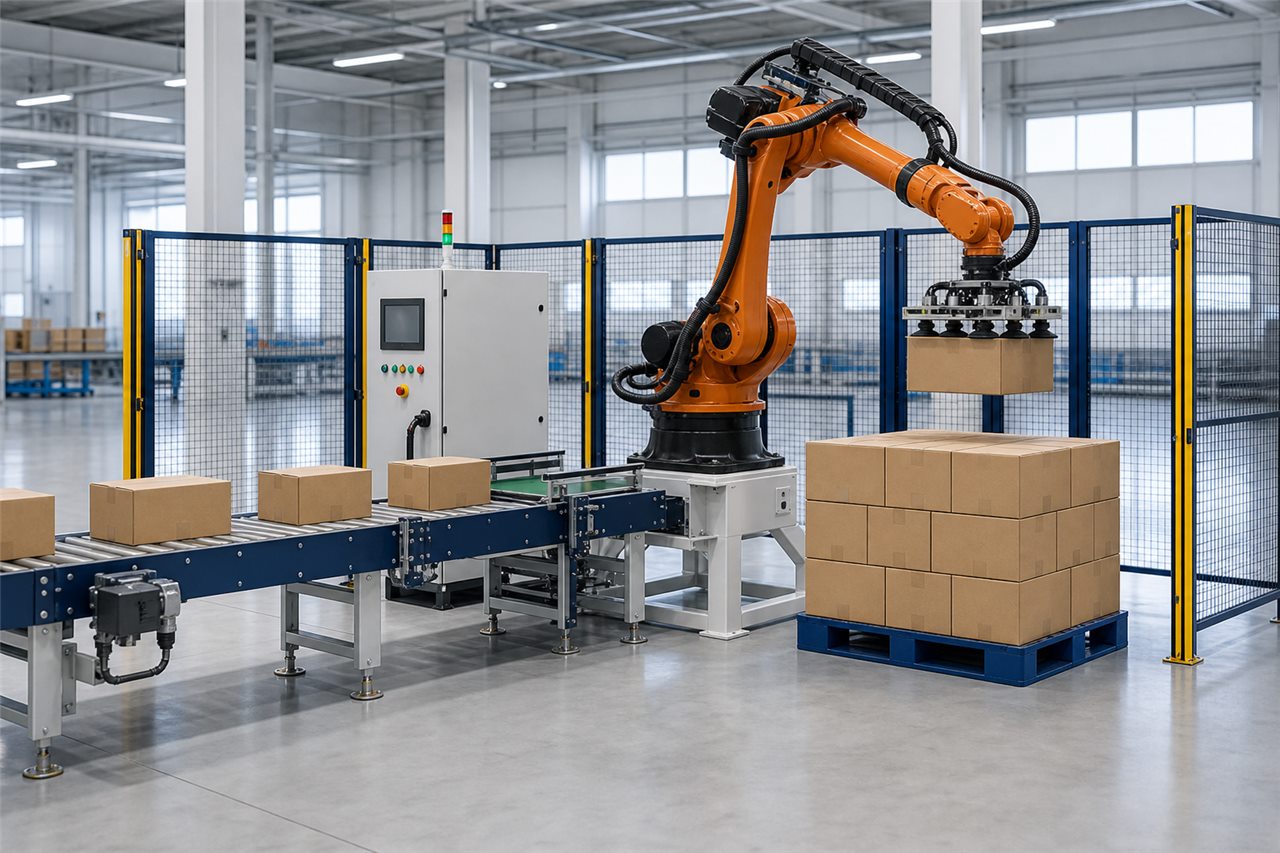

Review gantry palletizersA robot cell may be relevant when pick orientation, stack pattern or package formats change. Review reach, the proposed end-of-arm tool, format-change needs and the complete cycle before choosing a cell.

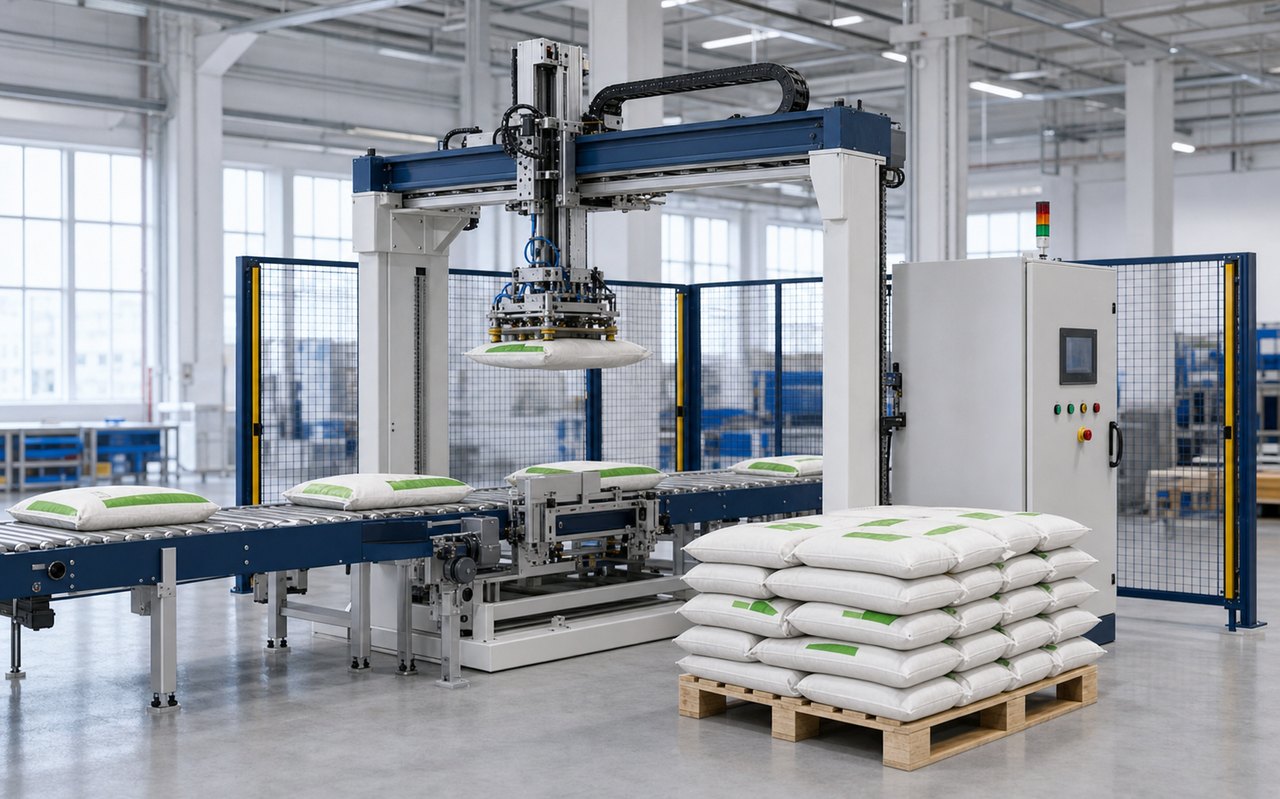

Review robot palletizer cellsShare the filled bag dimensions and weight, bag material, how firmly the fill holds its shape, and the pallet pattern. These details affect handling and stack stability; the gripping method needs review with the actual package.

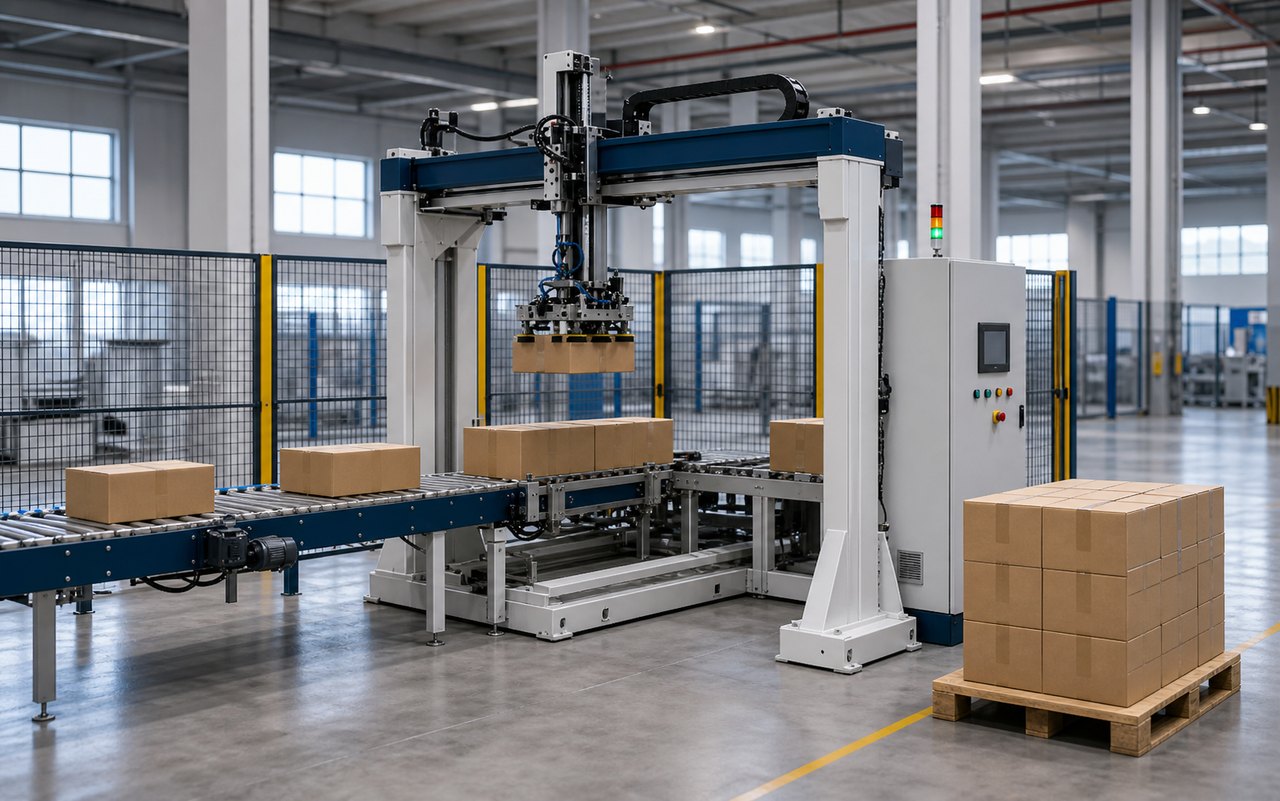

Bag handling pageShare carton sizes, weights, how they arrive at the infeed, the required orientation and any limits on stacking pressure. Include the pallet dimensions and whether mixed sizes or frequent changeovers are required.
Carton handling pageFor an initial review, include package photos or drawings, size and weight range, target line rate, pallet pattern and height, a layout showing infeed and outfeed, available floor space, destination country and the installation scope. We will review the configuration against those requirements.
